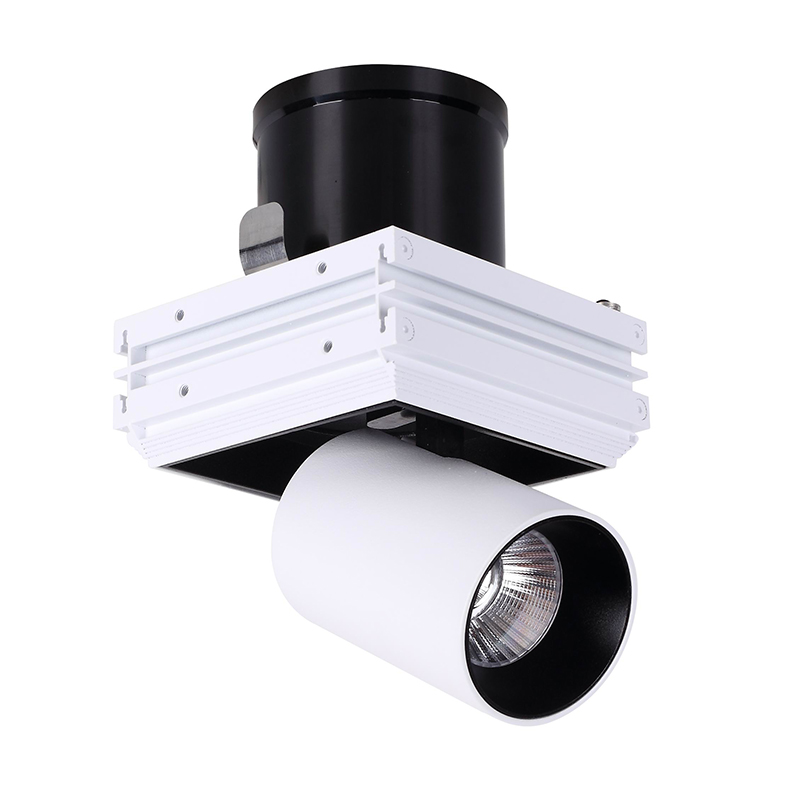

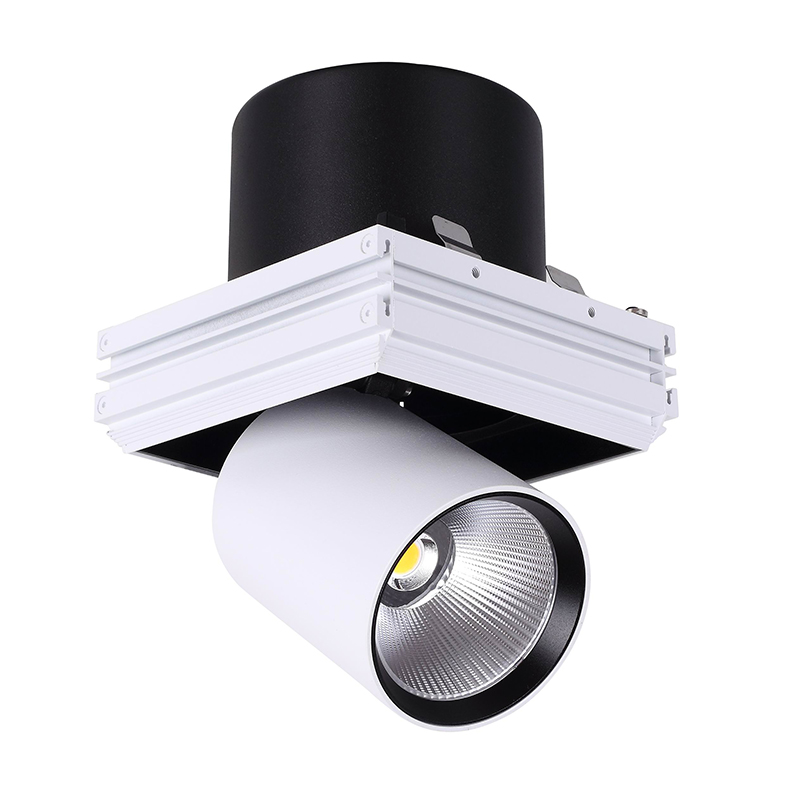

Trimless Led Downlights 7W COB Retractable Square Downlight For Commercial Lighting

  1. Baistretch Out Or Draw Back Adjustable Trimless Downlights.
  2. Lamp 355° Horizontally Rotatable,0° ~ 90° Tilting  .
  3. Regular Frame And Framless Type For Optional .
  4. Round And Square Type Single/Double Head Both Available.
  • Item No :

    Trimless Led Downlights
  • Order(MOQ) :

    50pcs
  • Lead Time :

    15-25Days

Specification

Model No. SL-SD9107-1 SL-SD9312-1 SL-SD9325-1
Watt (±10%) 5W 8W 20W
7W 12W 25W
Dimension 68*68*H102mm         92*92*H117mm   125*125*H136mm
Cutout Φ95*95mm  Φ115*115mm  Φ150*150mm
CCT 2700K/3000K/3500K/4000K/5000K
CRI Ra90/Ra95
IP Rating IP20
Install style Recessed
Optional Control Triac/0-10V/DALI
Operating temperature -20℃-+40℃
Beam Angle 15°/24°/36°
Ouput voltage 220-240V 50/60Hz
Material Die-Casting Aluminum
Control On/Off
Housing Color White/Black
Certificate CE
Warranty 3 years
Applications Hotels,Villas,Restaurants, Museum,Gallery,Shops,etc.



Features

  • Adjustable Led Spotlights No Trim Recessed Installaton, No Frame Showed On The Ceiling,Nice Looking And Moore Popular For Commercial Lighting Like Luxury Goods Shops Lighting,Mesume Lighting,Luxury Car Exhibition Lighting.
  • Ra90/95 High Color Rendering Is More Realistic, Restores The True Color Of The Subject,Perfect For Shops,Museum And Art Gallery Exhibition Lighting.
  • CCT Range 2700K/3000K/3500K/4000K/5000K/5500K,Could Customize The Exclusive Color Temperature, Create Different Atmospheres According To The Different Needs Of The Space.
  • Lamp Head Can Be Stretch Downward Upward,355° Horizontally Rotatable,0° ~ 90° Tilting.   Change The Lighting Direction Freely.Special Suitable for Commerical Lighting Like Museum Lighting,Gallery Lighting,Shops Lighting.
  • Using International Famous Brand Led Chip CREE Brand With High Brightness, Long Life, Small Light Decay, And Good Heat Dissipation Effect.
  • Optical Flexibility 15/24/36 Degree Beam Angle, Optic Lens High Transmittance ,Provide Soft Light, Wide Application Range .
  • Anti Glare Accessories Honeycomb For Option,Lower UGR,Provide Soft Lightinng,Create A Confortable Lighting Space.
  • Aluminum Lamp Housing Providing Excellent Thermal Dissipation. The Heat Dissipates Quickly.
  • Constant Current Driver Output With Flicker Free,Led Driver Efficiency 85-90% ,Achieves Stable Working Performance.
  • Sand White And Sand Black Surface Finish,Surface Treatment With Excellent Texture Feeling.
  • Triac Dimmable ,0/1-10V And Dali Dimming Led Driver Build In Adapter ,Support Smart System Control The Lighting Brightness And Color Temperature Of The Track Spotlight.
  • Family Design For This Adjustable Led Downlight Trimless Series Led Lights ,Seenlamp Provide Round Type /Square Type /1/2/3 Lamp Head Can Be Rotatable And Tilting, Perfer By Lighting Designer To Apply These Luminuares To Commeral Lighting Projects.



Application Scenarios

 Widely Used In Commercial Lighting, Museum Lighting,Display Lighting,  Exhibition Lighting And Residental Lighting Etc.
