Specification
Model No. |
SL-XQ305506 01 |
SL-XQ307510 01 |
SL-XQ309520 01 |
SL-XQ312030 01 |
Watt (±10%) |
6W |
8W |
15W |
25W |
7W |
12W |
20W |
30W |
Dimension |
62*62*H75mm |
85*85*H90mm |
104*104*H115mm |
140*140*149 |
Cutout |
55*55mm |
75*75mm |
95*95mm |
120*120mm |
CCT |
2700K/3000K/3500K/4000K/5000K |
CRI |
Ra90/Ra95 |
IP Rating |
IP20 /IP44 |
Install style |
Recessed |
Optional Control |
Triac/0-10V/DALI |
Operating temperature |
-20℃-+40℃ |
Beam Angle |
15°/24°/36°/50° |
Ouput voltage |
220-240V 50/60Hz |
Material |
Die-Casting Aluminum |
Control |
On/Off |
Housing Color |
White/Black |
Certificate |
CE |
Warranty |
3 years |
Applications |
Hotels,Villa,Culbs, Restaurants, Offices, Shops, Home,etc. |
Features
- Family Design,Round Type And Square Type Recessed Anti Glare Downlights For Lighting Designer To Choose.

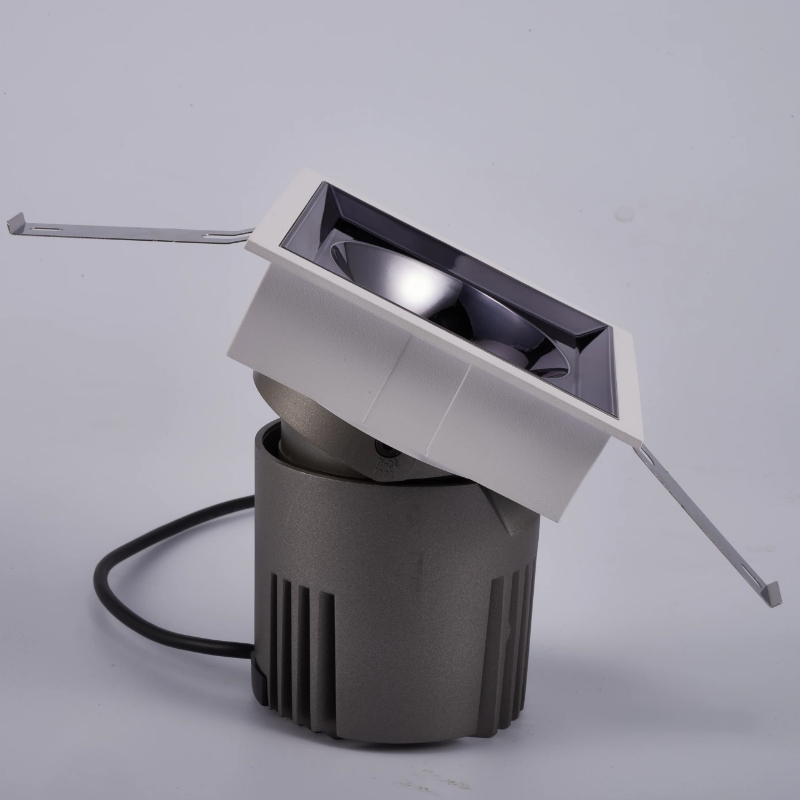

- Adjustable Downlight Design, Lamp Body 355° Horizontally Rotatable,0° ~ 30° Tilting.
- UGR≦16 Ultra Low Glare, Anti-Glare Design To Protect Eyes From Dazzling Lighting,Led Source Deep Hide ,Darken Nickel Color Reflector No Dazzl Lighting.
- Colorful Secondary Optic Reflector For Choose According To Room Decoration Style,Sand Silver/Sand Gold,Mass White/Black, And Uv Electropaint Darken Nickel/Gold/Chrome For Choose.
- Optical Flexibility 15/24/36/50 Degree Beam Angle, Optic Lens High Transmittance ,Provide Soft Light, Wide Application Range .
- Ra90/95 High Color Rendering Is More Realistic, Perfect For Paintings Lighting On The Wall .
- CCT Range 2700K/3000K/3500K/4000K/5000K/5500K,Create Different Atmospheres According To The Different Needs Of The Space.
- Using International High Quality Led ChipW ith High Brightness, Long Life,.
- Die-Casting Aluminum Lamp Housing ,Long-Term Pressure Is Not Easy To Deform, Durable, Anti-Corrosion And Anti-Rust.
- Constant Current Driver Output With Flicker Free,Led Driver Efficiency 85-88% ,Provide Uniform Light, Comfortable Visual Experience .
- CCT Changeable By Switch On Led Driver ,With 3000K 4000K 5000K -3 Color Temperature In 1 Lamp For Options To Meet The Needs Of Different Scene Styles .
- Seenlamp Hotel Square Sereis Adjustable Led Downlight ,Provide Total 4 Size For Cover the Wattage From 6w To 30w ,And Trimless Type For Optional Also.

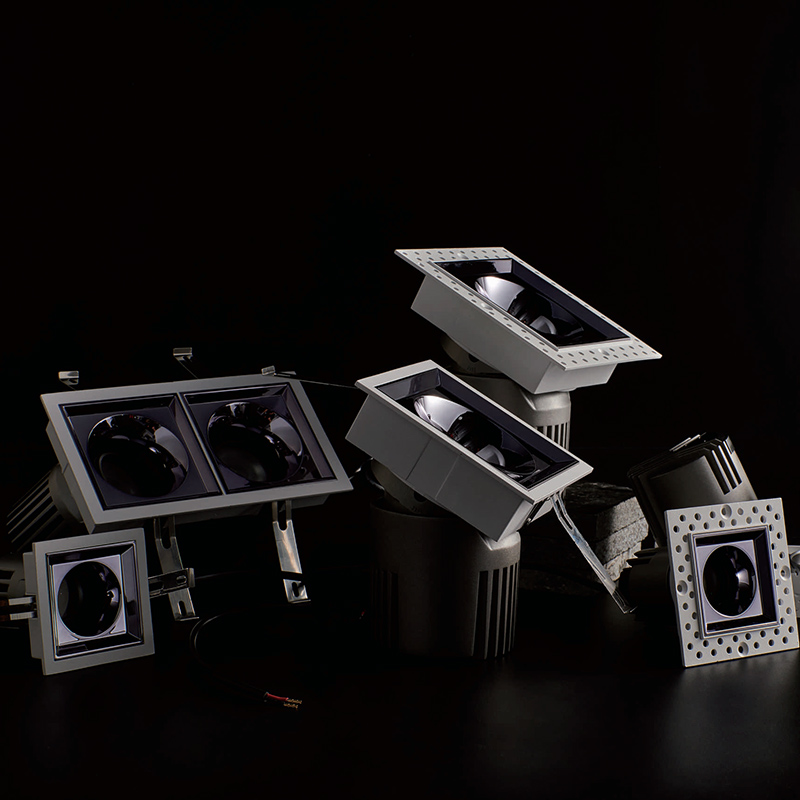

![Square Led Downlight Adjustable Led Downlights Square Type](/storage/uploads/images/202307/28/1690514378_IWUpO6vEPs.jpg)
Application Scenarios
Widely Use In Commercial And Residential Lighting, Like Hotels, Villa,Culbs, Restaurants, Offices, Shops And Home, Etc.
