Specification
| Model No. |
SL-SD9007 |
SL-SD9012 |
SL-SD9025 |
| Watt (±10%) |
5W |
8W |
20W |
| 7W |
12W |
25W |
| Dimension |
Φ82*H102mm |
Φ100*H117mm |
Φ155*H136mm |
| Cutout |
Φ75mm |
Φ92mm |
Φ140mm |
| CCT |
2700K/3000K/3500K/4000K/5000K |
| CRI |
Ra90/Ra95 |
| IP Rating |
IP20 |
| Install style |
Recessed |
| Optional Control |
Triac/0-10V/DALI |
| Operating temperature |
-20℃-+40℃ |
| Beam Angle |
15°/24°/36° |
| Ouput voltage |
220-240V 50/60Hz |
| Material |
Die-Casting Aluminum |
| Control |
On/Off |
| Housing Color |
White/Black |
| Certificate |
CE |
| Warranty |
3 years |
| Applications |
Hotels,Villas,Restaurants, Museum,Gallery,Shops,etc. |
Features
- Ra90/95 High Color Rendering Is More Realistic, Restores The True Color Of The Subject,Perfect For Shops,Museum And Art Gallery Exhibition Lighting.
- CCT Rang 2700K/3000K/3500K/4000K/5000K/5500K,Could Customize The Exclusive Color Temperature, Create Different Atmospheres According To The Different Needs Of The Space.

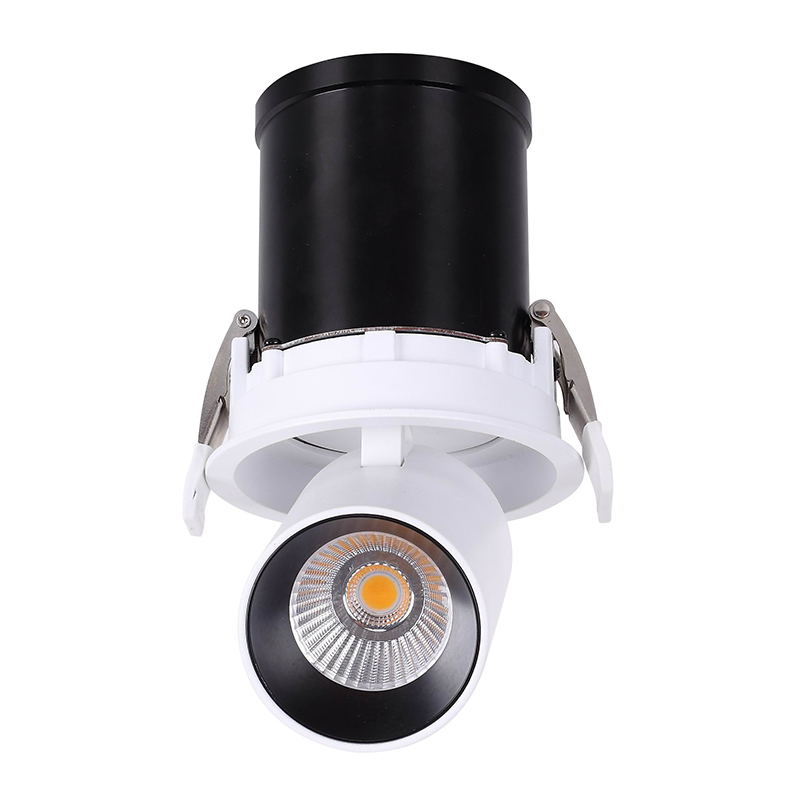

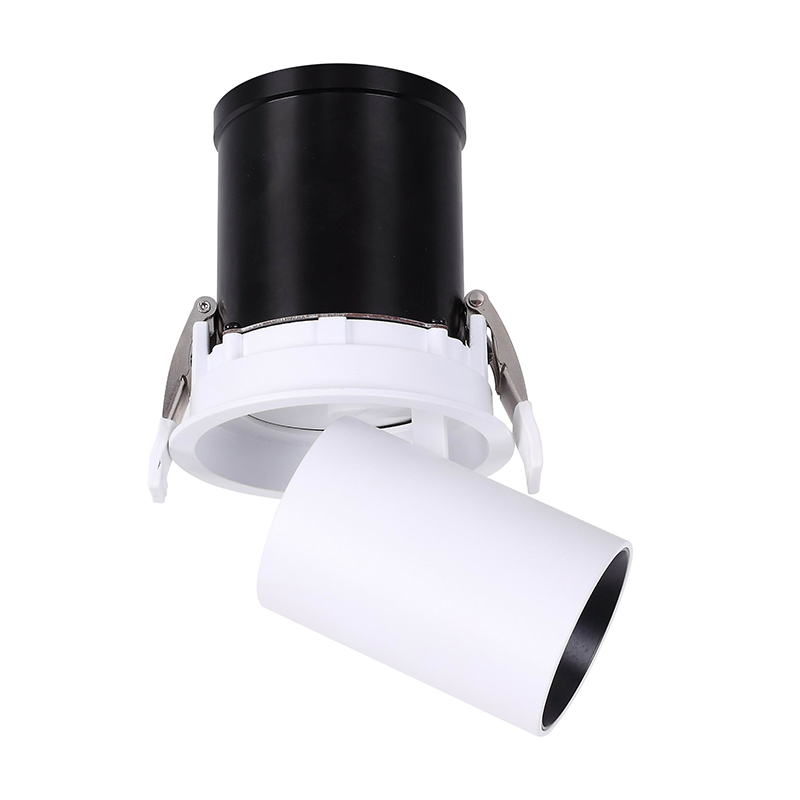

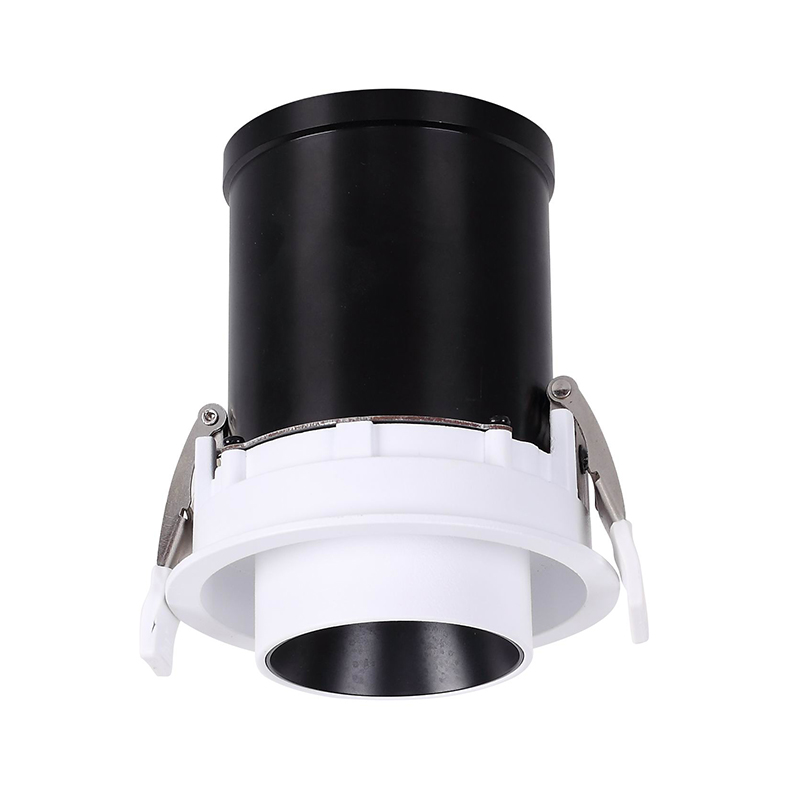

- Lamp Head Can Be Stretch Downward Upward,355° Horizontally Rotatable,0° ～ 90° Tilting. Change The Lighting Direction Freely.Special Suitable for Commerical Lighting Like Museum Lighting,Gallery Lighting,Shops Lighting.
- Using International Famous Brand Led Chip CREE Brand With High Brightness, Long Life, Small Light Decay, And Good Heat Dissipation Effect.
- Optical Flexibility 15/24/36 Degree Beam Angle, Optic Lens High Transmittance ,Provide Soft Light, Wide Application Range .
- Anti Glare Accessories Honeycomb For Option,Lower UGR,Provide Soft Lightinng,Create A Confortable Lighting Space.
- Aluminum Lamp Housing Providing Excellent Thermal Dissipation. The Heat Dissipates Quickly.
- Constant Current Driver Output With Flicker Free,Led Driver Efficiency 85-90% ,Achieves Stable Working Performance.
- Sand White And Sand Black Surface Finish,Surface Treatment With Excellent Texture Feeling.
- Triac Dimmable ,0/1-10V And Dali Dimming Led Driver Build In Adapter ,Support Smart System Control The Lighting Brightness And Color Temperature Of The Track Spotlight.
- This Adjustable Lighting Directions Gimmable Led Downlight Series ,Seenlamp Provide Round Type ,Square Type, Also Trimless Type, 1/2/3 Lamp Head Can Be Rotatable And Tilting, Perfer By Lighting Designer To Apply These Luminuares To Commeral Lighting Projects.
Application Scenarios
Widely Used In Commercial Lighting, Museum Lighting,Display Lighting, Exhibition Lighting And Residental Lighting Etc.
