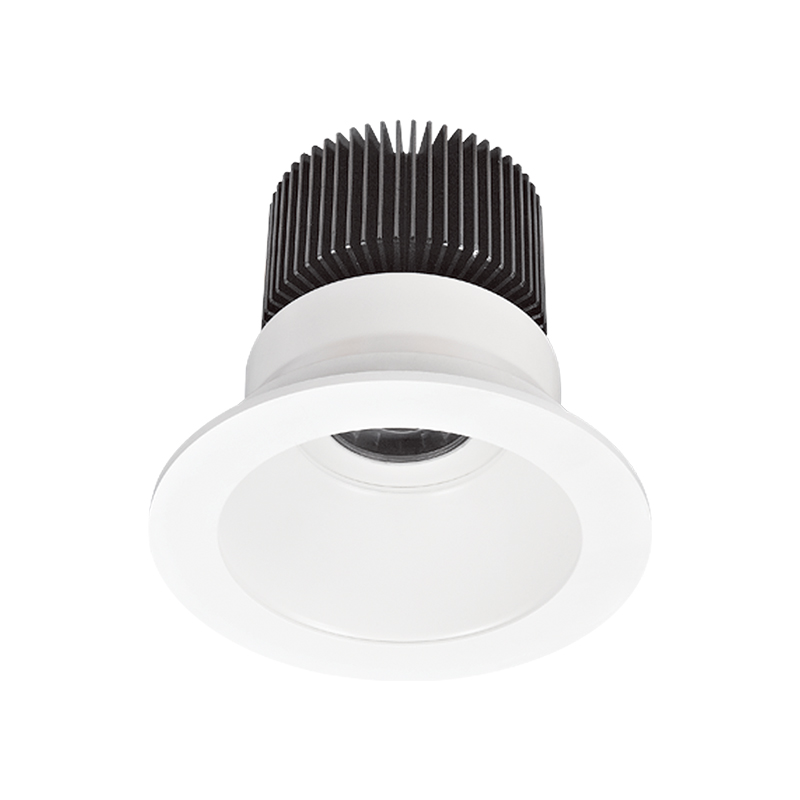

Recessed Led Downlight COB Ceiling Down Lights Interior Lighting 7W-50W

  1. Widely Power Range From 7W To 50W.
  2. Full Aluminum Lamp Boday Excellent Thermal Dissipation.
  • Item No :

    Led Downlight
  • Order(MOQ) :

    50pcs
  • Lead Time :

    15 days

Specification

Model No. SL-TD8301 SL-TD8302 SL-TD8303 SL-TD8304 SL-TD8306 SL-TD8308
Watt (±10%) 7W 10W 12W 20W 30W 40W-50W
Dimension Φ103*H94mm Φ106*H110mm Φ120*H115mm Φ134*H123mm Φ194*H138mm Φ240*H160mm
Cutout ø80mm ø90mm ø100mm ø115mm ø165mm ø210mm
CCT 2700K/3000K/3500K/4000K/5000K
CRI Ra90
IP Rating IP20
Install style Recessed
Optional Control Triac/0-10V/DALI
Operating temperature -20℃-+40℃
Beam Angle 20°/30°/45°/ 60°
Ouput voltage 220-240V 50/60Hz
Material Aluminum
Control On/Off
Housing Color White/Black
Certificate CE
Warranty 3 years
Applications Hotels, Restaurants, Offices, Shops, Home,etc.



Product Features



SEENlamp Factory Provide Total 6 Size For Achieve Power From 7w To 50w .

Material

High Quality Aluminum Heat Sink With Excellent Thermal Dissipation.

Surface Finish With Sand White Or Sand Black Frame Color .



Led Chip

High Color Rendering Index 90.Provide a Ture Color Persenting And Vivid View Of The World.

Widely CCT Range 2700K/3000K/3500K/4000K/5000K/5500K For Customers To Choose From .

Using International Famous Brand Led Chip Import From Usa Or Japan,With High Brightness, Long Life, Small Light Decay, And Good Heat Dissipation Effect.



Led Driver

Constant Current Driver Output With Flicker Free, PF 0.9,Provide High Work Efficiency And Stable Performance.

Suitable For Triac Dimming, 0/1-10V And Dali Dimming Smart Control System.





Application

Widely Used In Hotels, Restaurants, Shopping Mall, Offices, Supermarkets,Perfect Design For Commercial Lighting And Residental Lighting .



Led Downlight





Choosing The Right Power Of Led Downlight For Your Housing: A Comprehensive Guide



When It Comes To Illuminating Your Living Space, Led Downlights Offer An Efficient And Stylish Solution. Seenlamp Lighting Offers a Range Of Led Downlights, From 7W To 50W, Allowing You To Customize Your Lighting Setup Based On Your Housing's Ceiling Height. In This Article, We Will Guide Through The Process Of Selecting The Most Suitable Power Of Led Downlight For Your Specific Requirements. Let's Delve Into This Illuminating Journey!



1. Understanding Ceiling Height And Lighting Requirements:

The Height Of Your Ceiling Plays a Crucial Role In Determining The Appropriate Power Of Led Downlight Needed For Optimal Illumination. The Higher The Ceiling, The More Powerful The Downlight Required To Achieve The Desired Brightness. Consider The Following Examples As a General Guideline:



2. 7W Led Downlight:

The 7W Led Downlight Is Perfect For Ceilings With a Height Of Around 2.0 Meters. It Creates a Warm And Cozy Ambiance For Spaces Like Bathrooms, Hallways, Or Small Bedrooms. Additionally, It Is An Excellent Choice For Areas Where Subtle Accent Lighting Is Desired.



3. 10W And 12W Led Downlights:

For Slightly Higher Ceilings, Ranging From 2.4 To 2.7 Meters, The 10W And 12W Led Downlights Are Recommended. These Downlights Offer Increased Brightness And Coverage, Making Them Suitable For Larger Bedrooms And Living Areas.



4. 20W Led Downlight:

If Your Ceiling Height Measures Between 2.8 And 3.2 Meters, The 20W Led Downlight Becomes An Ideal Choice. With Its Enhanced Luminosity, It Provides Ample And Evenly Distributed Light Throughout The Room. This Power Option Is Suitable For Kitchens, Dining Areas, And Home Offices.



5. 30W And 40W Led Downlights:

For Ceilings Ranging Between 3.3 And 3.8 Meters, The 30W And 40W Led Downlights Offer Superior Illumination. These Downlights Are Well-Suited For Bigger Spaces, Such As Open-Plan Living Rooms, Conference Rooms, Or Retail Areas, Where Maximum Brightness Is Desired.



6. 50W Led Downlight:

For Ceilings Exceeding 3.8 Meters, The 50W Led Downlight Is The Most Suitable Choice. This High-Power Option Is Recommended For Spaces With Tall Ceilings, Such As Art Galleries, Large Commercial Spaces, And Retail Showrooms, Where a Strong And Impactful Lighting Effect Is Desired.



7. Additional Considerations:

While The Guidelines Above Offer a General Framework, It's Crucial To Consider Other Factors Too:



- Desired Ambiance: If You Prefer a More Subdued Lighting Effect, You May Opt For a Lower-Powered Downlight Even With Taller Ceilings.

- Room Size: If You Have a Small Room With a High Ceiling, Consider Using Multiple Lower-Powered Downlights To Distribute Light Evenly.



Conclusion:

Properly Selecting The Power Of Led Downlights Based On Your Housing's Ceiling Height Ensures You Achieve The Desired Illumination Levels And Ambiance In Each Room. Seenlamp Lighting's Range Of Led Downlights, With Power Options Ranging From 7W To 50W, Caters To Various Ceiling Heights And Lighting Requirements. Take The Time To Assess Your Space And Make An Informed Decision To Create The Perfect Lighting Atmosphere In Your Home.
