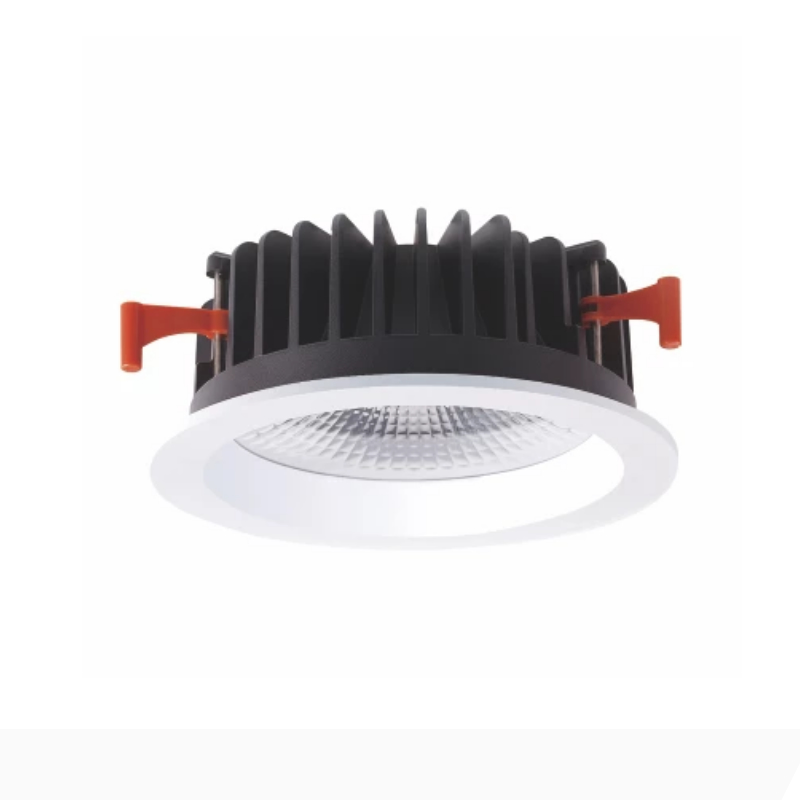

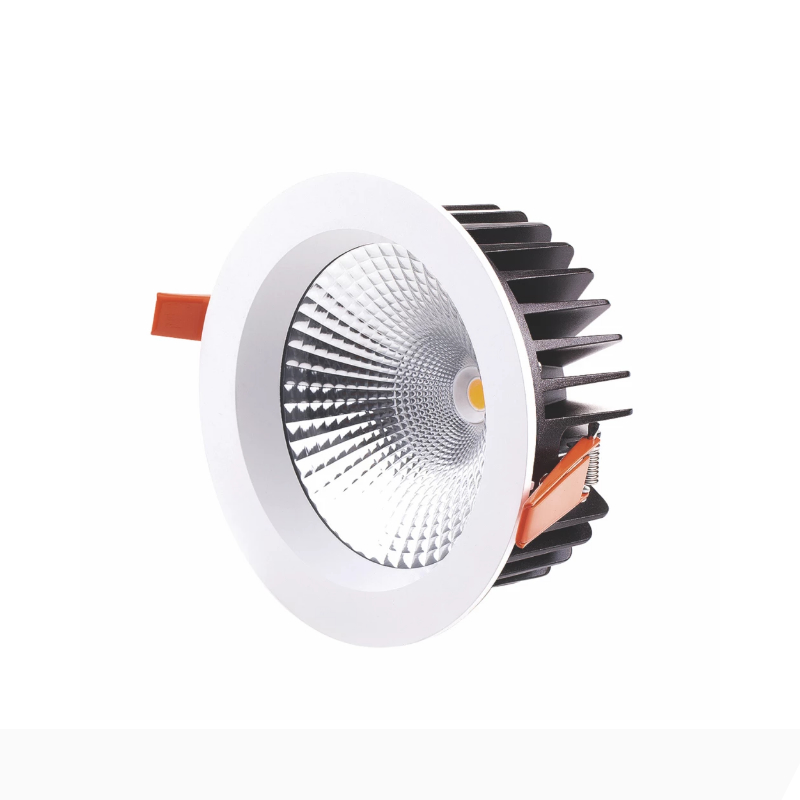

Cob Led Downlights Recessed 12W 15W 20W 30W 40W Factory Promise Excellect Quality

  1. Pure Aluminum Reflector Cup Beam Angle 60 Degree.
  2. Quick Plug Male And Female Connectors,Easy Installation And Convient For Maintaining .
  3. Series Sizes Of Different Wattages Are Suitable For 3-8 Inch Hole Sizes.
  • Item No :

    Recessed Led Downlights
  • Order(MOQ) :

    50pcs
  • Lead Time :

    15-20Days

Specification

Model No. SL-DL309012 SL-DL312520 SL-DL316530 SL-DL320040
Watt (±10%) 8W 15W 24W 35W
12W 20W 30W 40W
Dimension Φ110MM*H53MM Φ145MM*H69MM    Φ190MM*H86MM   Φ230MM*H99MM
Cutout ø90-95mm ø125-130mm ø165-170mm ø200-210mm
CCT 2700K/3000K/3500K/4000K/5000K
CRI Ra90
IP Rating IP20
Install style Recessed
Optional Control Triac/0-10V/DALI
Operating temperature -20℃-+40℃
Beam Angle 60°
Ouput voltage 220-240V 50/60Hz
Material Die-Casting Aluminum
Control On/Off
Housing Color White/Black
Certificate CE
Warranty 3 years
Applications Hotels,Villa,Culbs, Restaurants, Offices, Shops, Home,etc.

Features

  • Sand White Or Sand Black Color Lamp Body Finishing ,Surface Treatment With Excellent Texture Feeling.Perfet Suitable For High End Projects Lighting .
  • Precise Light Control Reflector Is Pure Aluminum Reflector Cup, Beam Angle 60degrees, Good Concentration, High Light Transmittance.

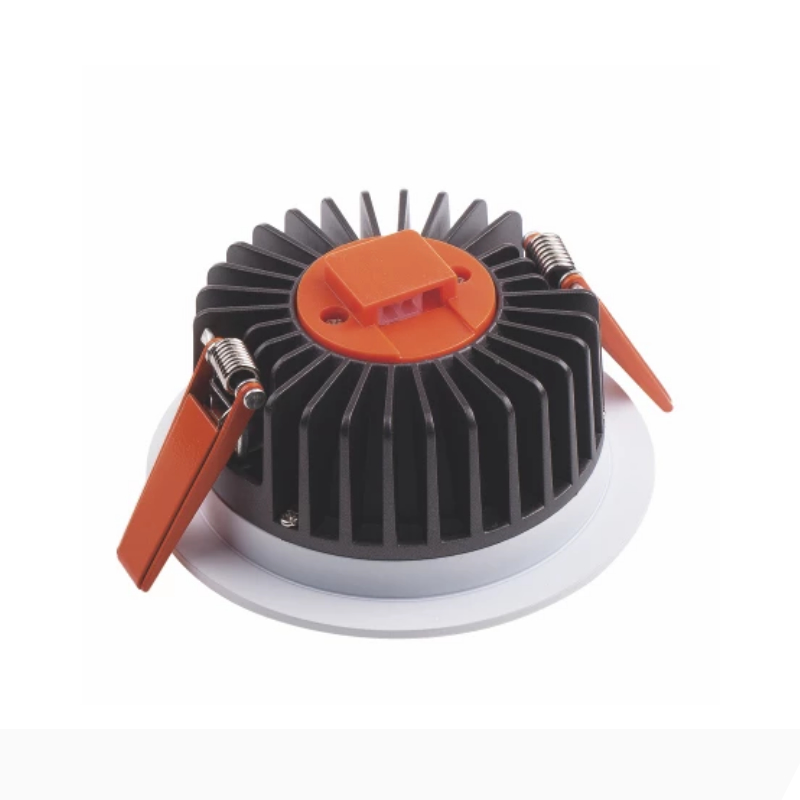

  • Die-Casting Aluminum Housing, Vane Shaped Aluminum Radiator Is Designed With Strong Air Convection,The Heat Dissipates Quickly.
  • Widely CCT Range 2700K/3000K/3500K/4000K/5000K/5500K For Customers To Choose From .
  • Using International Famous Brand Led Chip Import From Usa Or Japan,With High Brightness, Long Life, Small Light Decay, And Good Heat Dissipation Effect.
  • Constant Current Driver Output With Flicker Free, Pf0.9,Provide High Work Efficiency And Stable Performance.
  • High Color Rendering Index 90-95.Provide a Ture Color Persenting And Vivid View Of The World.
  • Suitable For Triac Dimming, 0/1-10V And Dali Dimming Smart Control System.
  • Seenlamp Use High Quality Male And Female Connector To Fit The Led Driver With Downlight,Easy Installation And Very Convient For Replace Led Driver After Serval Years .
  • Seenlamp Factory High Quality Cob Led Downlight Recessed Series ,Provide Total 4 Size For Achieve Power From 8w To 40w ,3inch Make 8-10w,4inch 15-20w,6inch Make 25-35w, 8inch Make 35-45w .
  • Seenlamp Provide 3-5 Years Of The Product Quality Warranty .

Application Scenarios



Widely Used In Hotels, Restaurants, Shopping Mall, Offices, Supermarkets,Perfect Design For Commercial Lighting and Residental Lighting .
