Specification
| Model No. |
SL-DL209012 |
SL-DL212520 |
SL-DL214530 |
SL-DL216540 |
| Watt (±10%) |
10W |
15W |
25W |
35W |
| 12W |
20W |
30W |
40W |
| 15W |
25W |
35W |
45W |
| Dimension |
100*100*H64mm |
136*136*H83mm |
158*158*H96mm |
180*180*H109mm |
| Cutout |
90*90mm |
125*125mm |
145*145mm |
165*165mm |
| CCT |
2700K/3000K/3500K/4000K/5000K |
| CRI |
Ra90 |
| IP Rating |
IP65 |
| Install style |
Recessed |
| Optional Control |
Triac/0-10V/DALI |
| Operating temperature |
-20℃-+40℃ |
| Beam Angle |
15°/24°/36°/60° |
| Ouput voltage |
220-240V 50/60Hz |
| Material |
Die-Casting Aluminum |
| Control |
On/Off |
| Housing Color |
White/Black |
| Certificate |
CE |
| Warranty |
3 years |
| Applications |
Hotels,Villa,Culbs, Restaurants, Offices, Shops, Home,etc. |

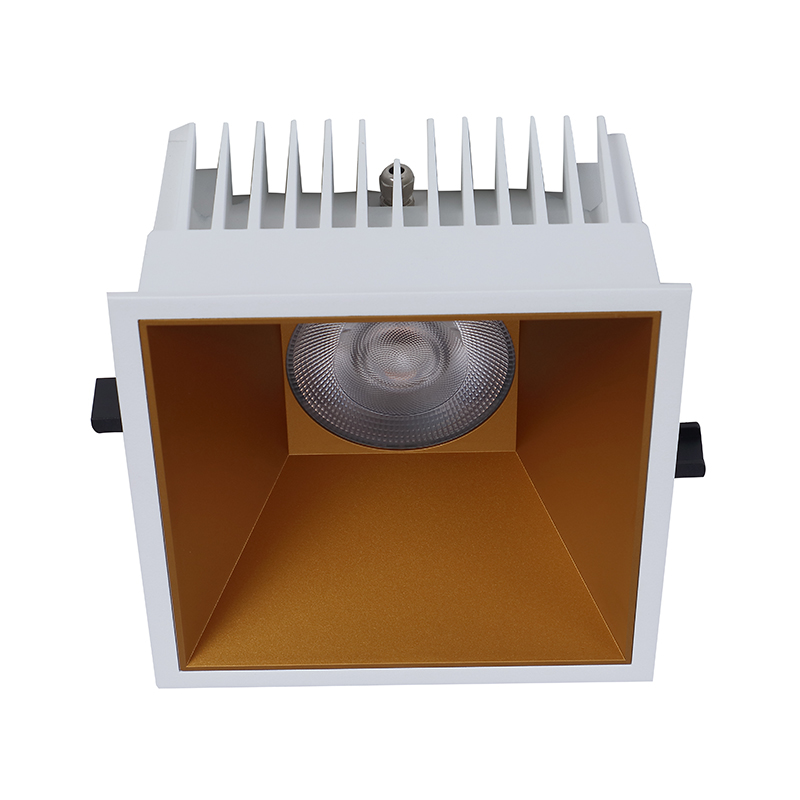

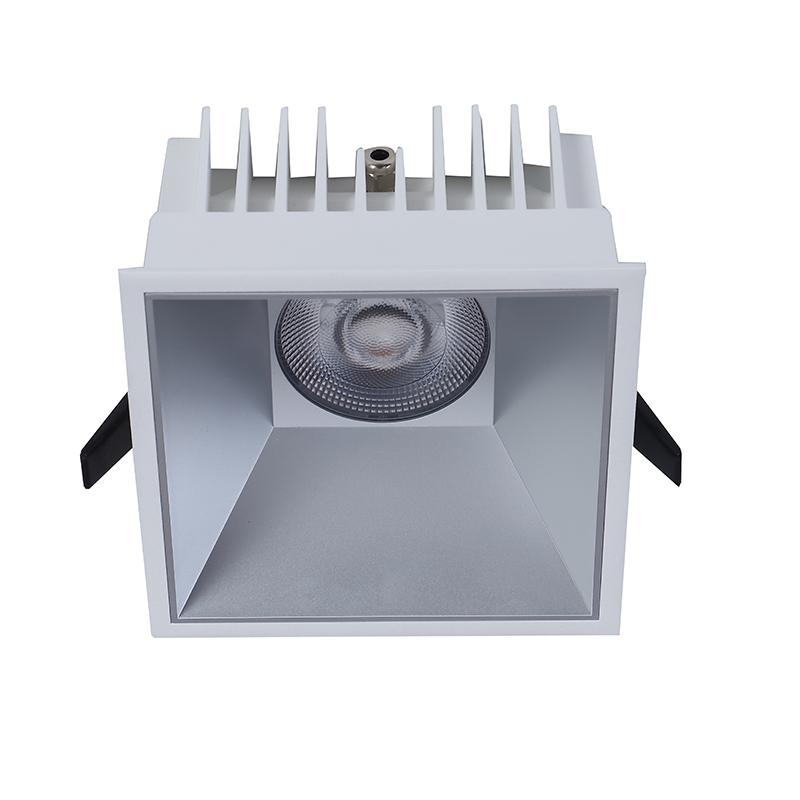

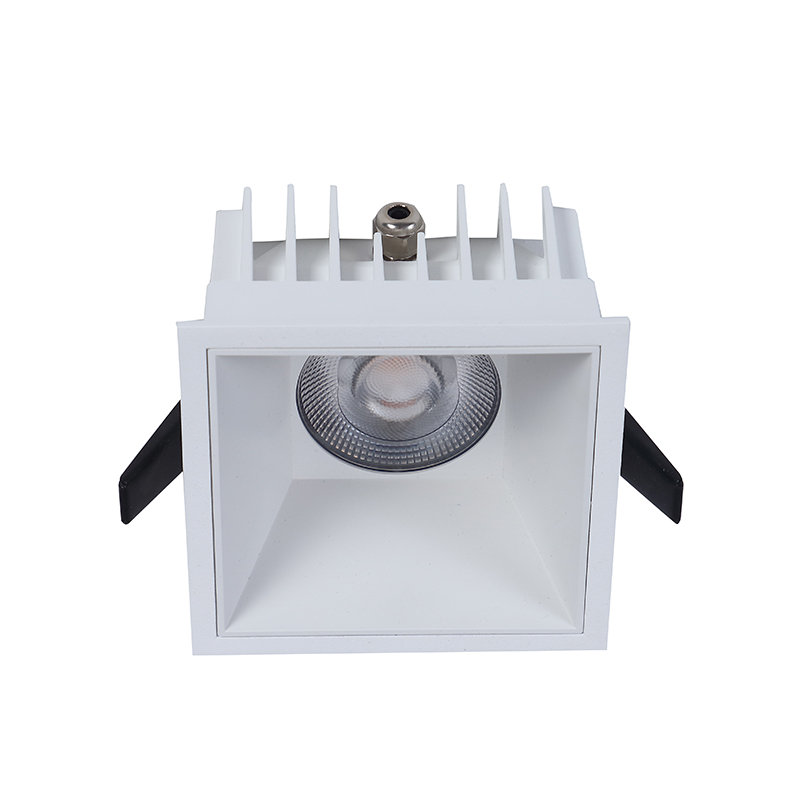

Features
- Anti-Glare Design, Ultra Low Glare,Protect Eyes From Dazzling Lighting,Led Source Deep Hide In Ceiling,Black Color Reflector No Dazzl Lighting.Provide Soft Lighting.
- Effective Waterproof Instructure Design ,Waterproof Screw, Waterproof Rubber Ring Double Protection,Ip Rating Up To IP65 ,Suitable For Indoor And Semi-Outdoor Lighting,
- Ra90/95 High Color Rendering Is More Realistic, Restores The True Color Of The Subject.
- CCT Range 2700K/3000K/3500K/4000K/5000K/5500K,Could Customize The Exclusive Color Temperature, Create Different Atmospheres According To The Different Needs Of The Space, And Create Your Own Comfortable Space.
- Casting Aluminum Lamp Housing ,Long-Term Pressure Is Not Easy To Deform, Durable, Anti-Corrosion And Anti-Rust.
- Colorful Buffle For Choose According To Room Decoration Style,Sand Silver,Sand Gold,Gross White,Gross Black, And UV Electropaint Darken Color Availabe.
- Using International Famous Brand Led Chip With High Brightness, Long Life, Small Light Decay, And Good Heat Dissipation Effect.
- High Transmittance Optic Lens, Optical Flexibility 15/24/38/60 Degree Beam Angle, Soft Light, Wide Application Range .
- Using Waterproof Connector Make Downlight Lamp Body Up To 360° High-Tight Lamp Body, With a High-Sealing Silicone Ring On The Back To Prevent Water And Gasoline Smoke From Running Into The Lamp Body.
- Constant Current Driver Output With Flicker Free, PF0.9,Provide Uniform Light, Comfortable Visual Experience .

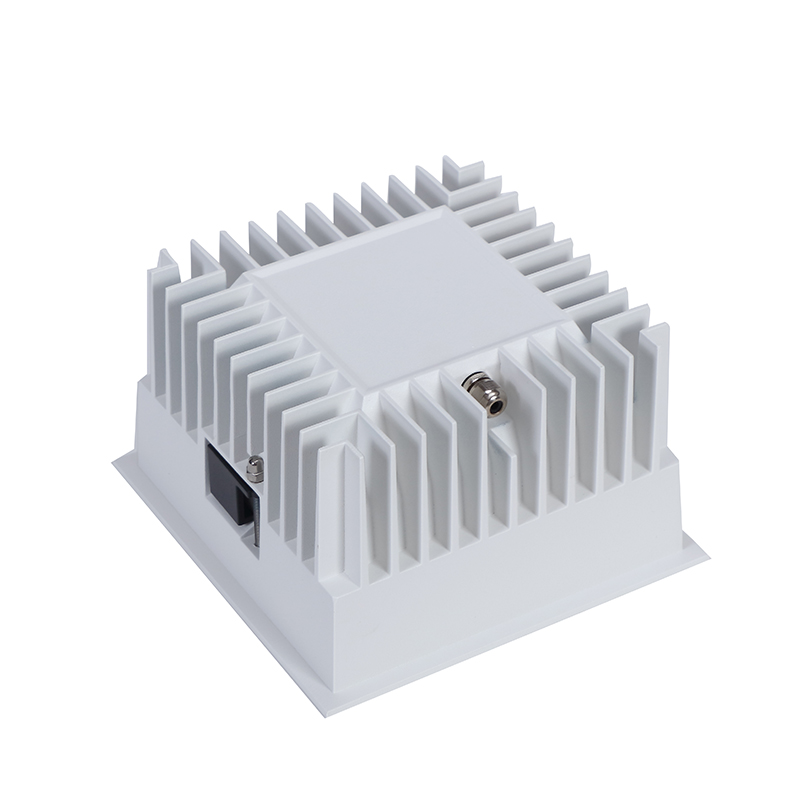

- Vane Shaped Aluminum Radiator Is Designed With Strong Air Convection, The Heat Dissipates Quickly.
- Sand White Or Sand Black Color Lamp Body Finishing ,Surface Treatment With Excellent Texture Feeling.Perfet Suitable For High End Projects Lighting .
Application Scenarios
Widely Used In Commercial Lighting and Residental Lighting .Lighting Projects Like Hotels, Restaurants, Shopping Mall, Offices, Supermarkets.etc.
