Specification
Model No. |
SL-DL907508 |
SL-DL909515 |
SL-DL912524 |
SL-DL915035 |
SL-DL917545 |
Watt (±10%) |
7W |
12W |
20W |
30W |
40W |
9W |
15W |
24W |
35W |
45W |
Dimension |
Φ87*H65mm |
Φ110*H75mm |
Φ135*H95mm |
Φ160*H110mm |
Φ186*H121mm |
Cutout |
ɸ75 |
ɸ95 |
ɸ125 |
ɸ150 |
ɸ175 |
CCT |
2700K/3000K/3500K/4000K/5000K |
CRI |
Ra90 |
IP Rating |
IP65 |
Install style |
Recessed |
Optional Control |
Triac/0-10V/DALI |
Operating temperature |
-20℃-+40℃ |
Beam Angle |
60° |
Ouput voltage |
220-240V 50/60Hz |
Material |
Die-Casting Aluminum |
Control |
On/Off |
Housing Color |
White/Black |
Certificate |
CE |
Warranty |
3 years |
Applications |
Hotels,Villa,Culbs, Restaurants, Offices, Shops, Home,etc. |
Features

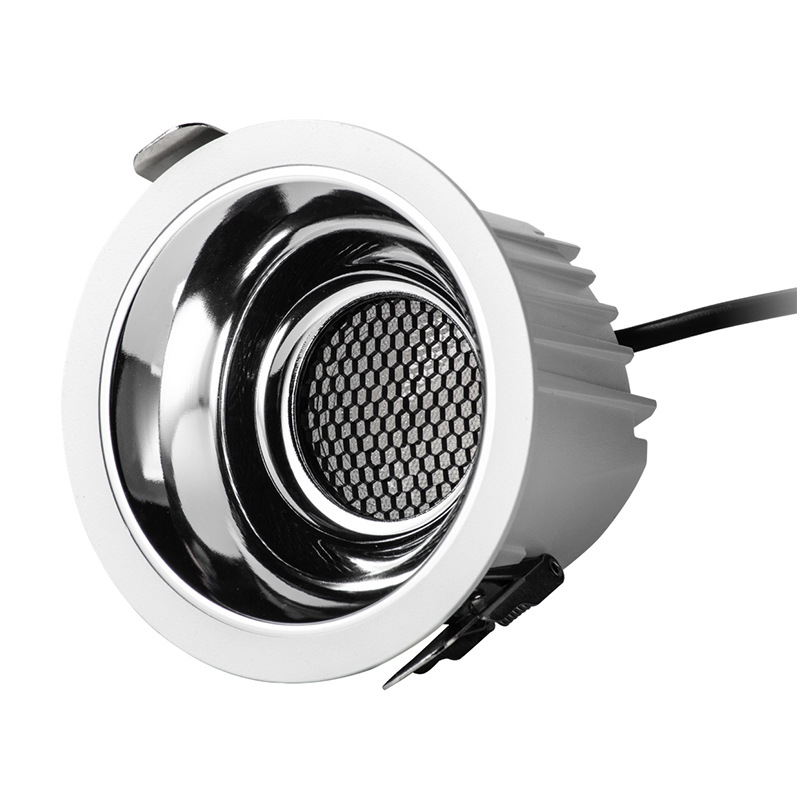

- Anti-Glare Alumium Refelctor Could Add Honeycob To Realizing Ultra Low Glare,Protect Eyes From Dazzling Lighting,Provide Soft Lighting.
- IP65 Waterproof Instructure Design ,Waterproof Screw And Sealed Protective Cover Provide Double Protection Of The Led Source, Perfect Suitable For Indoor And Semi-Outdoor Lighting.
- High Color Rendering Ra90 Is More Realistic, Restores The True Color Of The Subject.
- CCT Range 2700K/3000K/3500K/4000K/5000K/5500K,Freedom To Create Different Atmospheres According To The Different Needs Of Application .
- Casting Aluminum Lamp Housing , Durable And High Thermal Conductivity Efficiency,Good For Led Chip To Keep a Long And Stable Lifespan.
- Different Finish Of The Secondary Reflector According To Room Decoration Style,Sand Silver,Matt White,Gross Black, And Uv Electropaint Chorme For Optional.
- Using World Famous Brand Led Chip With High Brightness, Long Life, Small Light Decay. High Colr Rendering Index.
- Constant Current Driver PF0.9,Stable Efficiency And Flicker Free .Triac Dimming, 0/1-10V And Dali Dimming Led Driver For Optional .
- Vane Shaped Aluminum Radiator Design,Good For Air Convection, Heat Dissipates Quickly.
- Sand White Or Sand Black Color Lamp Body Finishing ,Surface Treatment With Excellent Texture Feeling.Perfet Suitable For High End Projects Lighting .
- Seenlamp Provide 3-5 years quality warranty of this waterproof led downlight ,Dimmable and Non Dimmable led driver with Input voltage AC 220V-230V, and 85V-120V can be privde as requested .
Application Scenarios
Widely Used In Commercial Lighting And Residental Lighting .Lighting Projects Like Hotels, Restaurants, Shopping Mall, Offices, Supermarkets.Etc.
