Specification
Model No. |
SL-TH007507R |
SL-TH009512R |
Watt (±10%) |
7W |
12W |
Dimension |
Φ85*H33mm |
Φ105*H38mm |
Cutout |
Φ75mm |
Φ95mm |
CCT |
2700K/3000K/3500K/4000K/5000K |
CRI |
Ra90 |
IP Rating |
IP20 |
Install style |
Recessed |
Optional Control |
Triac/0-10V/DALI |
Operating temperature |
-20℃-+40℃ |
Beam Angle |
15° /24° /36° /60° |
Ouput voltage |
220-240V 50/60Hz |
Material |
Die-Casting Aluminum |
Control |
On/Off |
Housing Color |
White/Black |
Certificate |
CE |
Warranty |
3 years |
Applications |
Hotels, Restaurants, Offices, Shops, Home,etc. |
Features

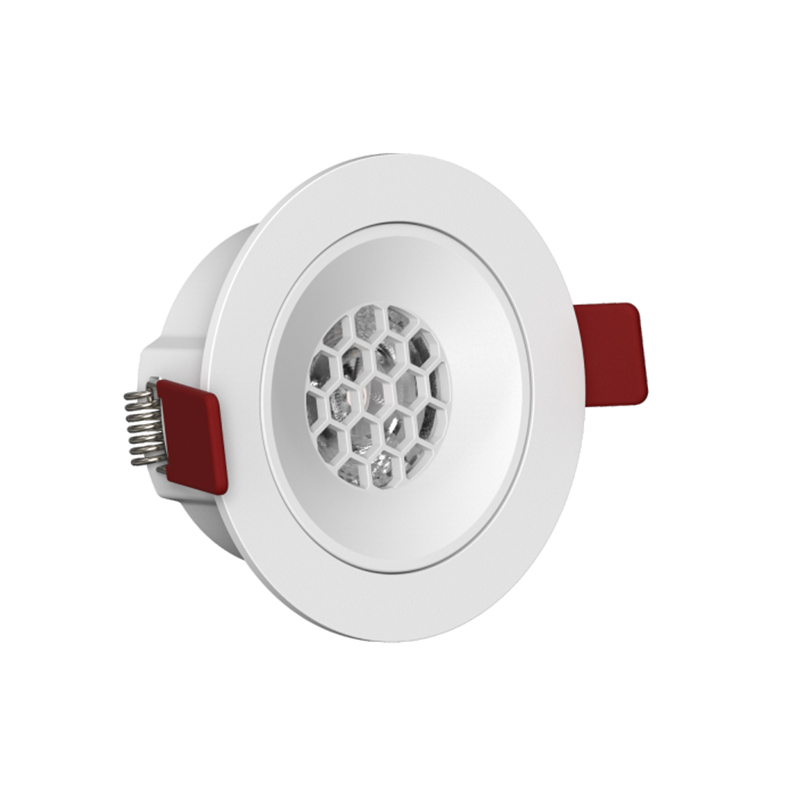

Ultra-Thin Downlight Is a Lamp With Unique Design And Characteristics, The Following Are Its Common Product Characteristics:
- Ultra-Thin Design: Ultra-Thin Tube Lamps Have Very Thin Lamp Bodies, Making Their Appearance Very Delicate And Suitable For Places With Limited Space.
- Uniform And Soft Light: Ultra-Thin Downlights Usually Have Professional Optical Design And Heat Dissipation Structure, Which Can Produce Uniform And Soft Light, Avoid Light Spots Or Glare, And Provide a Comfortable Lighting Experience.
- Easy Installation: The Ultra-Thin Downlight Is Usually Installed By Embedded Installation Or Ceiling Installation, Which Is Easy To Install, And The Appropriate Installation Method Can Be Selected According To Different Needs.
Seenlamp Ultra Thin Downlights Round And Square Type Adjustable Luminaries Feature
- Ultra-Thin Series Recessed Adjustable Led Downlight Perfer For Some Lighting Projects That The Building Which The Ceiling Height It Is Limited,Seenlamp Provide The Downlight With Lamp Body Height Below 40mm.
- Sand White Or Sand Black Color Lamp Body Surface Finishing .
- Die-Casting Aluminum Housing,Aluminum Radiator With Heat Dissipates Quickly.
- Widely Color Temperature 2700K/3000K/3500K/4000K/5000K/5500K Available For Customers To Choose From .
- Famous Brand Cob Led Chip Cree Brand With High Brightness, Long Life, Small Light Decay.
- Constant Current Driver Output With Flicker Free, And Pf0.9,With High Lighting Efficiency And Stable Working Performance.
- High Color Rendering Index 90. More Better To Presenting a True Color Of The Objects
- Seenlamp Provide 3-5 Years Of The Product Quality Warranty .
Application Scenarios
Perfect Design For Commercial Lighting And Residental Lighting .Widely Used In Hotels, Restaurants, Shopping Mall, Offices, Apartment House,etc.
