Specification
| Model No. |
SL-SD9107 |
SL-SD9112 |
SL-SD9125 |
| Watt (±10%) |
5W |
8W |
20W |
| 7W |
12W |
25W |
| Dimension |
Φ72*H102mm |
Φ90*H117mm |
Φ135*H136mm |
| Cutout |
Φ95mm |
Φ120mm |
Φ165mm |
| CCT |
2700K/3000K/3500K/4000K/5000K |
| CRI |
Ra90/Ra95 |
| IP Rating |
IP20 |
| Install style |
Recessed |
| Optional Control |
Triac/0-10V/DALI |
| Operating temperature |
-20℃-+40℃ |
| Beam Angle |
15°/24°/36° |
| Ouput voltage |
220-240V 50/60Hz |
| Material |
Die-Casting Aluminum |
| Control |
On/Off |
| Housing Color |
White/Black |
| Certificate |
CE |
| Warranty |
3 years |
| Applications |
Hotels,Villas,Restaurants, Museum,Gallery,Shops,etc. |
Features
- Adjustable Led Spotlights No Trim Recessed Installaton, No Frame Showed On The Ceiling,Nice Looking And Moore Popular For Commercial Lighting Like Luxury Goods Shops Lighting,Mesume Lighting,Luxury Car Exhibition Lighting.
- Ra90/95 High Color Rendering Is More Realistic, Restores The True Color Of The Subject,Perfect For Shops,Museum And Art Gallery Exhibition Lighting.
- CCT Range 2700K/3000K/3500K/4000K/5000K/5500K,Could Customize The Exclusive Color Temperature, Create Different Atmospheres According To The Different Needs Of The Space.

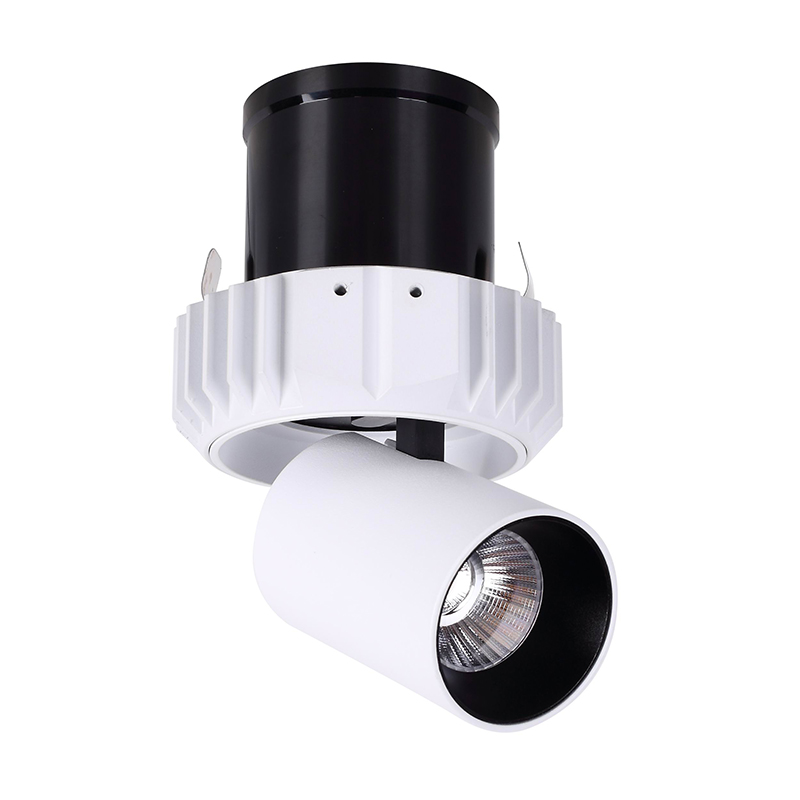

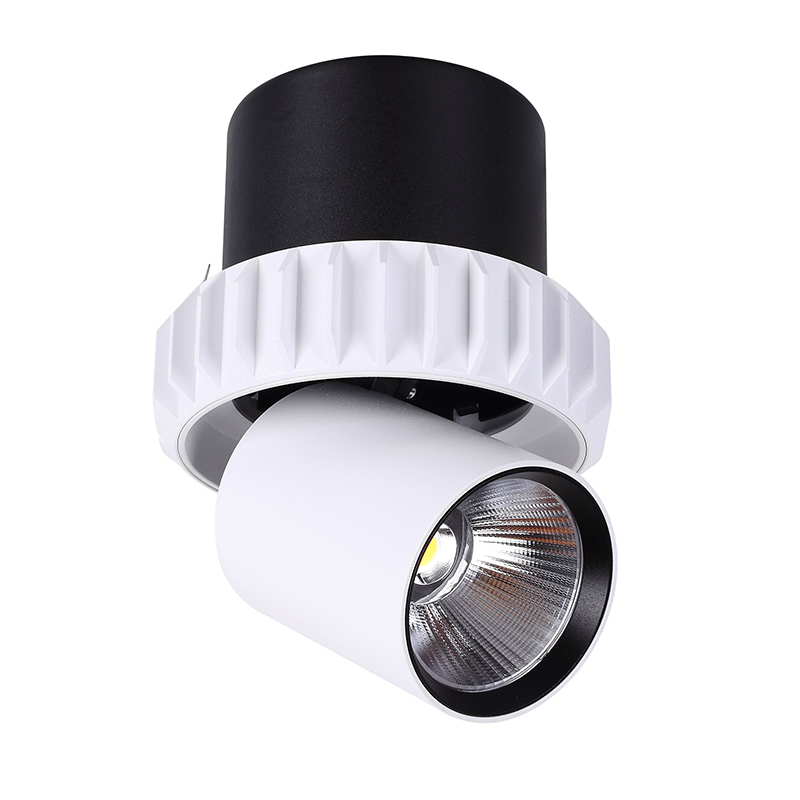

- Lamp Head Can Be Stretch Downward Upward,355° Horizontally Rotatable,0° ～ 90° Tilting. Change The Lighting Direction Freely.Special Suitable for Commerical Lighting Like Museum Lighting,Gallery Lighting,Shops Lighting.
- Using International Famous Brand Led Chip CREE Brand With High Brightness, Long Life, Small Light Decay, And Good Heat Dissipation Effect.
- Optical Flexibility 15/24/36 Degree Beam Angle, Optic Lens High Transmittance ,Provide Soft Light, Wide Application Range .
- Anti Glare Accessories Honeycomb For Option,Lower UGR,Provide Soft Lightinng,Create A Confortable Lighting Space.
- Aluminum Lamp Housing Providing Excellent Thermal Dissipation. The Heat Dissipates Quickly.
- Constant Current Driver Output With Flicker Free,Led Driver Efficiency 85-90% ,Achieves Stable Working Performance.
- Sand White And Sand Black Surface Finish,Surface Treatment With Excellent Texture Feeling.
- Triac Dimmable ,0/1-10V And Dali Dimming Led Driver Build In Adapter ,Support Smart System Control The Lighting Brightness And Color Temperature Of The Track Spotlight.

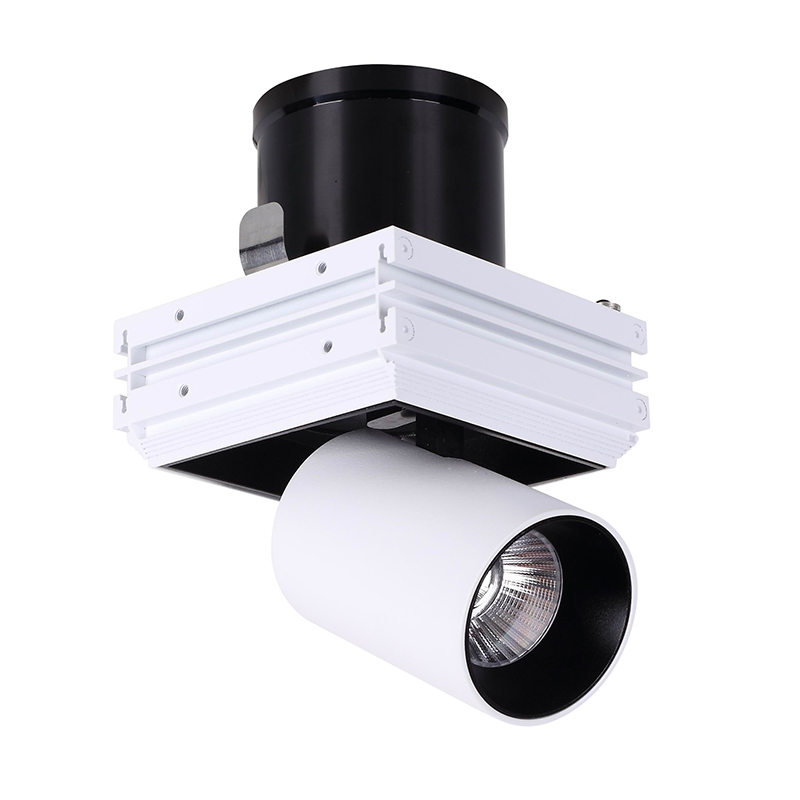

- Family Design For This Adjustable Lighting Directions Gimmable Led Spotlights Series Led Lights ,Seenlamp Provide Round Type Led Spotlights ,Square Type Adjustable Spotlights With 1/2/3 Lamp Head Can Be Rotatable And Tilting, Perfer By Lighting Designer To Apply These Luminuares To Commeral Lighting Projects.
Application Scenarios
Widely Used In Commercial Lighting, Museum Lighting,Display Lighting, Exhibition Lighting And Residental Lighting Etc.
